The Science of Holding Your Chips Cool
Virtually each trendy digital gadget generates warmth, whether or not we discover it or not. With out correct warmth administration, our digital techniques would both destroy themselves or, conversely, be severely restricted of their computing capabilities.
The common TechSpot reader will suppose, after all, CPU and GPU cooling, however why does RAM normally not want followers to maintain it cool? Why is there such an enormous disparity between the efficiency of a cell processor and a desktop processor, despite the fact that their dies are pretty comparable in measurement? Why have current efficiency features from new chip generations began to decelerate?
Whereas transistor counts proceed to develop, we’re more and more operating into the bodily and thermal limits of silicon. Leakage present rises as transistors shrink, and the warmth generated per sq. millimeter turns into tougher to dissipate. Lately, the business has shifted towards superior packaging strategies – like chiplets, 3D stacking, and interposers – to work round these limits somewhat than brute-force previous them. Efficiency enhancements at the moment are much less about shrinking transistors and extra about intelligent architectural, interconnect, and thermal design methods.
The convey correct solutions to those sorts of questions that contain warmth and the physics of how computer systems work on the nanoscale, this text will contact on the essential science of warmth, how and why it’s generated in electronics, and the varied strategies we’ve got developed to manage it.
The Fundamentals of Warmth: How Power Strikes By means of Electronics
In the event you keep in mind highschool physics, warmth is just the random movement of the atoms and molecules that make up our world. When one molecule has greater kinetic vitality than one other, we are saying it’s hotter. This warmth might be transferred from one object to a different once they come into contact, persevering with till the 2 attain equilibrium. This implies the warmer object will switch a few of its warmth to the cooler object, with the tip outcome being a temperature someplace between the 2.
The time it takes to switch warmth is dependent upon the thermal conductivity of the supplies concerned. Thermal conductivity measures a cloth’s capacity to conduct warmth.

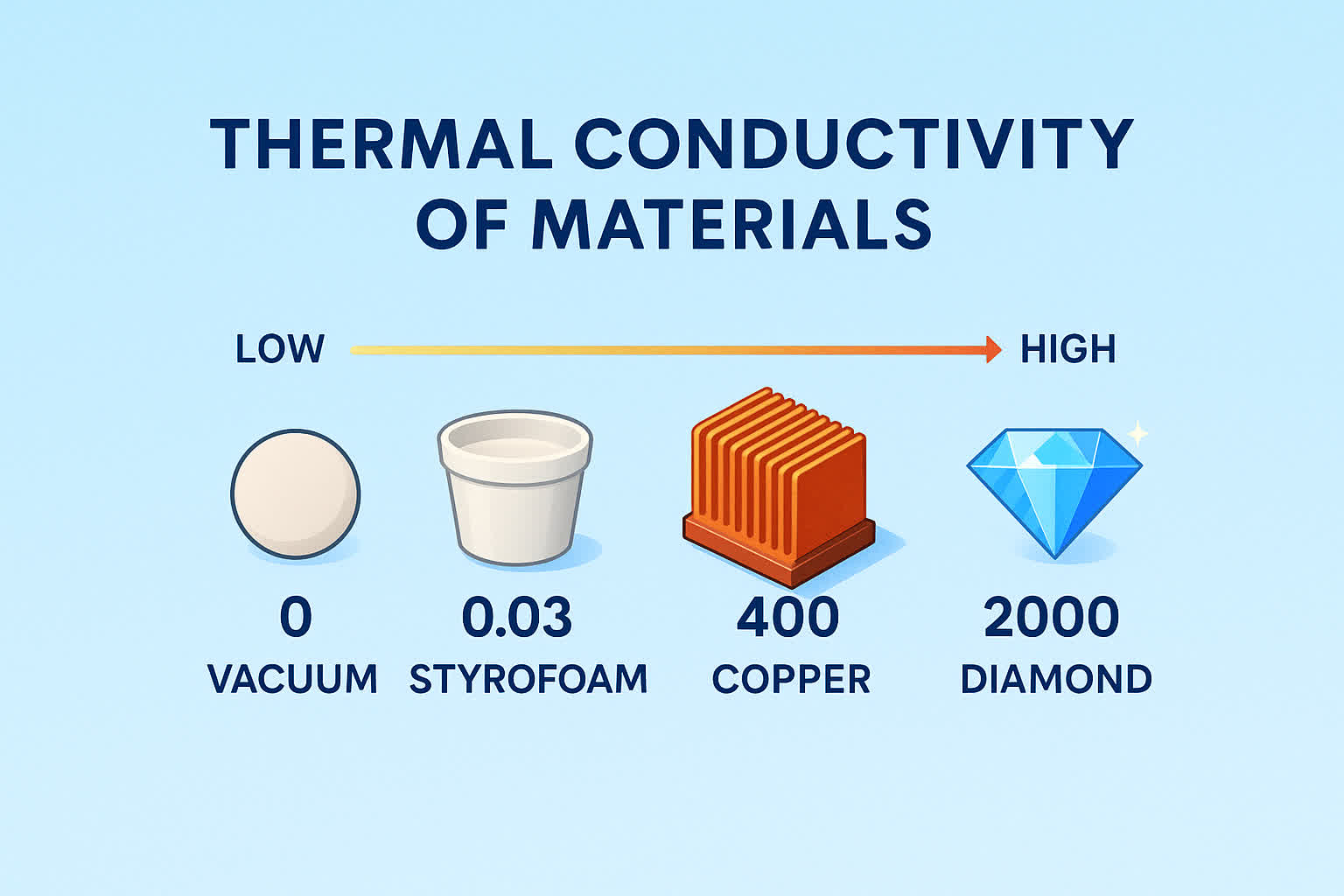

An insulator like Styrofoam has a comparatively low thermal conductivity of round 0.03, whereas a conductor like copper has a excessive thermal conductivity of about 400. On the two extremes, a real vacuum has a thermal conductivity of 0, whereas diamond has the best recognized thermal conductivity, exceeding 2,000.
One necessary factor to recollect is that warmth all the time flows towards colder areas, however technically, there is no such factor as “chilly” – we solely understand one thing as “chilly” if it has much less warmth than its environment.
One necessary factor to recollect is that warmth all the time flows towards colder areas, however technically, there is no such factor as “chilly” – we solely understand one thing as “chilly” if it has much less warmth than its environment. One other key definition we’ll want is thermal mass, which represents an object’s inertia towards temperature fluctuations. With the identical measurement furnace, it is a lot simpler to warmth a single room than a complete home. It’s because the thermal mass of a single room is far smaller than that of a complete home.
We are able to put all these ideas along with the straightforward instance of boiling water. Once you activate the range, the new flame comes into contact with the cooler pot. For the reason that materials making up the pot is an effective thermal conductor, warmth from the fireplace is transferred into the water till it boils.
The time it takes to boil is dependent upon the tactic of heating, the pot materials, and the quantity of water. In the event you tried to boil a pot of water with a small lighter, it could take eternally in comparison with utilizing the massive flame of a range. It’s because the range has a a lot greater thermal output, measured in watts, than the small lighter.
Subsequent, your water will boil quicker if the pot has the next thermal conductivity as a result of extra warmth will probably be transferred to the water. In the event you have been wealthy sufficient, a diamond pot can be the holy grail! Lastly, everyone knows a small pot of water will boil quicker than a a lot bigger one. It’s because with the smaller pot, there’s much less thermal mass to warmth up.
When you’re performed cooking, you may let the water calm down naturally. When this occurs, the warmth from the water is launched into the cooler room. For the reason that room has a a lot greater thermal mass than the pot, its temperature will not change by a lot.
The Three Amigos (Sources) of Warmth in Chips
Now that we perceive how warmth works and strikes between objects, let’s discuss the place it comes from within the first place. All digital electronics are made up of thousands and thousands and even billions of transistors. For a extra detailed take a look at how they work, try Half 3 of our examine on trendy CPU design.
Primarily, transistors are electrically managed switches that activate and off billions of occasions a second. By connecting a bunch of them collectively, we are able to type the advanced constructions of a pc chip.
As these transistors function, they dissipate energy from three sources: switching, short-circuit, and leakage. Switching and short-circuit energy are each thought of dynamic sources of warmth as a result of they’re influenced by the transistors turning on and off. Leakage energy, then again, is taken into account static because it stays fixed and isn’t affected by the transistor’s operation.
We’ll begin with switching energy. To show a transistor on or off, we’ve got to set its gate to floor (logic 0) or Vdd (logic 1). It is not so simple as simply flipping a change although since this enter gate has a really small quantity of capacitance. We are able to consider this as a tiny rechargeable battery. With a purpose to activate the gate, we should cost the battery previous a sure threshold stage. As soon as we’re prepared to show the gate off once more, we have to dump that cost to floor. Though these gates are microscopic, there are billions of them in trendy chips and they’re switching billions of occasions a second.
A small bit of warmth is generated each time that gate cost is dumped to floor. To search out the switching energy, we multiply the exercise issue (the typical proportion of transistors switching at any given cycle), the frequency, the gate capacitance, and the voltage squared collectively.

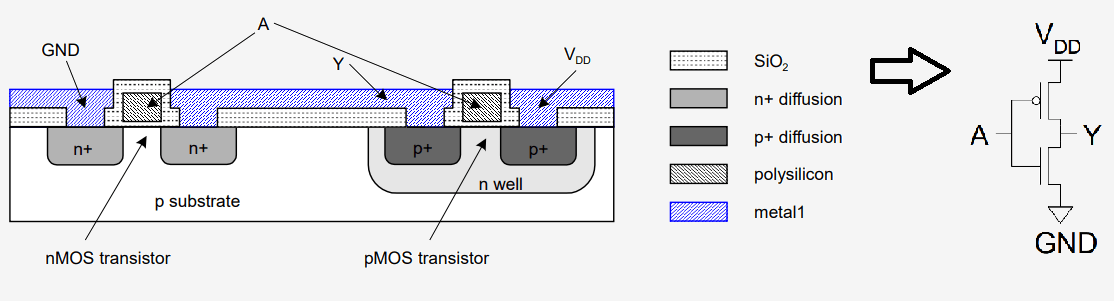

Let us take a look at short-circuit energy now. Fashionable digital electronics use a method known as Complementary Metallic Oxide Semiconductors (CMOS). Transistors are organized in such a method that there’s by no means a direct path for present to movement to floor. Within the above instance of a NOT gate, there are two complementary transistors. At any time when the highest one is on, the underside one is off and vice-versa. This ensures that the output is both at a 0 or 1 and is the inverse of the enter.
As we change transistors on and off nevertheless, there’s a very quick period of time when each the transistors are conducting on the similar time. When one set is popping off and one other is popping on, they may each conduct once they attain the mid level. That is unavoidable and gives a short lived path for present to movement on to floor. We are able to attempt to restrict this by making the transistors between On and Off states quicker, however cannot absolutely eradicate it.
Because the working frequency of a chip will increase, there are extra state adjustments and extra instantaneous short-circuits. This will increase the warmth output of a chip. To search out short-circuit energy, we a number of the short-circuit present, working voltage, and switching frequency collectively.
Each of those are examples of dynamic energy. If we wish to cut back it, the best method is to only lower the frequency of the chip. That is typically not sensible since it could decelerate the efficiency of the chip. An alternative choice is to lower the chip’s working voltage. Chips used to run at 5V and above whereas trendy CPUs function round 1V.
By designing the transistors to function at a decrease voltage, we are able to cut back the warmth misplaced by dynamic energy. Dynamic energy can be the rationale your CPU and GPU get hotter while you overclock. You might be growing the working frequency and sometimes the voltage, too. The upper these go, the extra warmth is generated every cycle.
The final kind of warmth generated in digital electronics is leakage energy. We like to consider transistors as being both utterly on or off, however that is not how they work in actuality. There’ll all the time be a tiny quantity of present that flows by even when the transistor is within the non-conducting state. It is a very difficult formulation and the impact is just getting worse as we proceed to shrink the transistors.
Once they get smaller, there’s much less and fewer materials to dam the movement of electrons once we need them to be off. This is without doubt one of the principal elements limiting the efficiency of recent generations of chips because the proportion of leakage energy retains growing every era.
Additionally learn: Sustainable Computing: Cut back, Reuse, Recycle. However… Is It Actually That Easy?
The legal guidelines of physics have put us in a nook, and that nook is getting tighter. That is additionally why AI accelerators like NPUs and TPUs – which pack huge quantities of compute into tiny areas – pose main new thermal design challenges. These chips are sometimes deployed in knowledge facilities the place airflow and energy budgets are restricted, making environment friendly thermal methods extra necessary than ever.
Past efficiency, sustainability can be changing into a central concern. Information facilities are more and more exploring liquid immersion cooling, warmth recycling, and low-GWP refrigerants to satisfy environmental targets whereas holding power-hungry {hardware} underneath management. Inexperienced cooling tech is not only a future aim anymore – it is actively being deployed in trendy infrastructure.
Thermoelectric cooling, or Peltier units, stay area of interest however have seen renewed curiosity in recent times. Some producers have experimented with hybrid AIO + TEC options to push cooling efficiency past what conventional air or water can present. Whereas these setups nonetheless are typically inefficient and power-hungry, enhancements in thermoelectric supplies might ultimately make them extra sensible for particular use instances.
Likewise, vapor-compression chillers and phase-change techniques are nonetheless primarily reserved for knowledge facilities and excessive overclocking. However there’s ongoing analysis into compact, environment friendly cooling options utilizing superior refrigerants and novel compressor designs that might someday convey sub-ambient cooling to extra mainstream setups.
Take a Chill Tablet: How We Maintain Chips Cool – Cooling Strategies Defined
So we all know the place warmth comes from in electronics – however what can we do with it? We have to do away with it as a result of if issues get too scorching, transistors can begin to break down and grow to be broken.
Thermal throttling is a chip’s built-in technique of cooling itself if we do not present ample cooling. If the inner temperature sensors detect that it is getting too toasty, the chip can routinely decrease its working frequency to cut back the quantity of warmth generated. Nonetheless, this is not one thing you wish to occur, and there are a lot better methods to cope with undesirable warmth in a pc system.

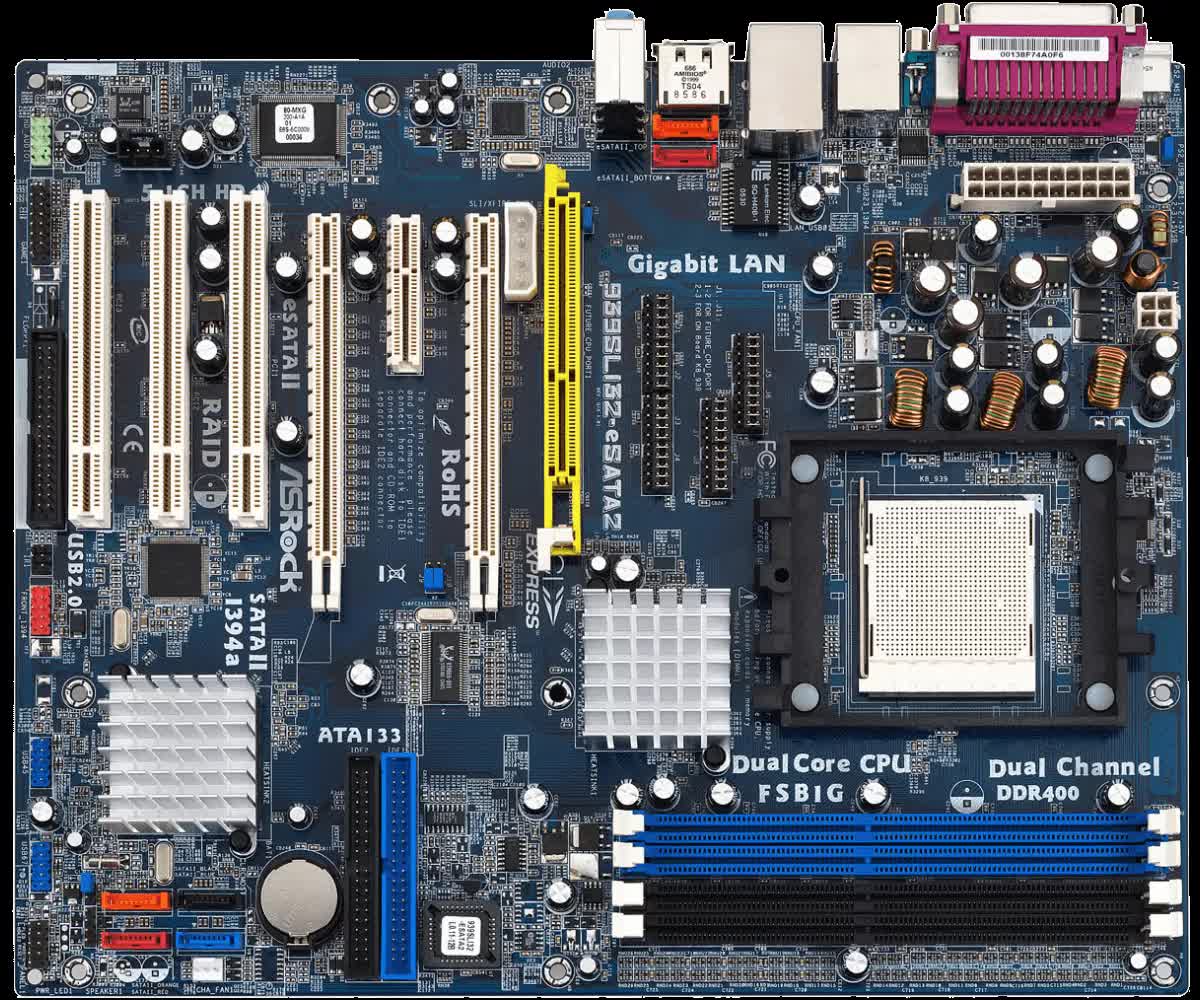

Some chips do not really want fancy cooling options. Have a look round your motherboard and you may see dozens of small chips with out heatsinks. How do they not overheat and destroy themselves? The reason being that they in all probability do not generate a lot warmth within the first place. Huge, beefy CPUs and GPUs can dissipate a whole bunch of watts of energy, whereas a small community or audio chip might solely use a fraction of a watt.
In these instances, the motherboard itself or the chip’s outer packaging can function an ample heatsink to maintain the chip cool. Usually, although, when you get above about 1 watt of energy dissipation, you could begin fascinated about correct thermal administration.
The secret right here is holding the thermal resistance between supplies as little as attainable. We wish to create the shortest, most effective path for warmth to journey from the chip to the ambient air. This is the reason CPU and GPU dies include built-in warmth spreaders (IHS) on prime. The precise silicon chip inside is far smaller than the dimensions of the package deal, however by spreading the warmth over a bigger space, we are able to cool it extra effectively. It is also necessary to make use of a great thermal compound between the chip and the cooler. With out this high-thermal-conductivity path, warmth would have a a lot tougher time flowing from the IHS to the heatsink.
There are two principal types of cooling: passive and energetic. Passive cooling makes use of a easy heatsink hooked up to the chip, counting on ambient airflow to hold the warmth away. The fabric will probably be one thing with a excessive thermal conductivity and a big floor space, permitting it to switch warmth from the chip to the encompassing air effectively.
Voltage regulators and reminiscence chips can typically get away with passive cooling since they do not generate as a lot warmth. Solely high-end DDR5 modules and server reminiscence usually require energetic cooling.
Likewise, the vast majority of cell phone processors are passively cooled, though sure area of interest or gaming smartphones generally use vapor chambers or miniature energetic followers to handle greater thermal masses.
The upper the efficiency of a chip, the extra energy it generates – and the bigger the heatsink required to maintain it cool. This is the reason telephone processors are much less highly effective than desktop-class processors: there merely is not sufficient cooling capability to maintain up.
When you get into the tens of watts, you may seemingly begin fascinated about energetic cooling. This includes utilizing a fan or one other technique to pressure air throughout a heatsink, permitting it to deal with up to a couple hundred watts. Nonetheless, to take full benefit of this a lot cooling capability, we have to be certain that warmth is effectively unfold from the chip throughout the whole floor of the cooler. It would not be very helpful to have an enormous heatsink with out an efficient technique to switch warmth to it.
That is the place liquid cooling and warmth pipes are available. Each carry out the identical important process: transferring as a lot warmth as attainable from a chip to a heatsink or radiator. In a liquid cooling setup, warmth is transferred from the chip to a water block utilizing a high-thermal-conductivity thermal compound. The water block, typically fabricated from copper or one other extremely conductive materials, then heats the liquid. This liquid shops the warmth and carries it to the radiator, the place it may be dissipated into the air. For smaller techniques like laptops, which might’t match a full liquid cooling setup, warmth pipes are quite common. In comparison with a fundamental copper tube, a warmth pipe setup might be 10-100x extra environment friendly at transferring warmth away from a chip.

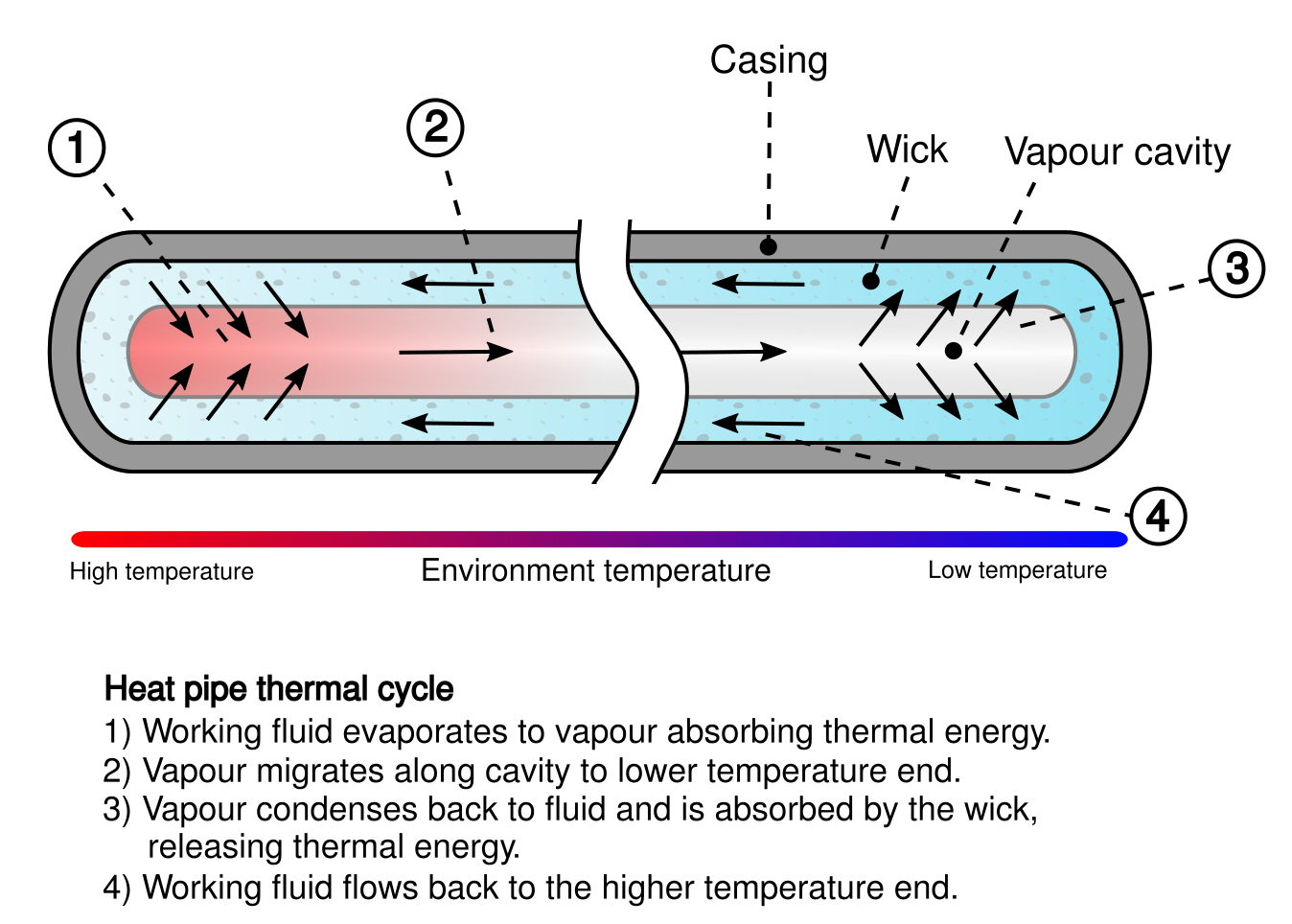

A warmth pipe is similar to liquid cooling however employs a part transition to extend thermal switch. Inside a warmth pipe, a liquid evaporates when heated, turning into vapor. The vapor travels alongside the pipe till it reaches the cooler finish, the place it condenses again right into a liquid. The liquid then returns to the new finish by gravity or capillary motion.
This evaporative cooling is identical precept behind why you are feeling chilly when getting out of a bathe or pool: the liquid absorbs warmth because it evaporates and releases it when it condenses.

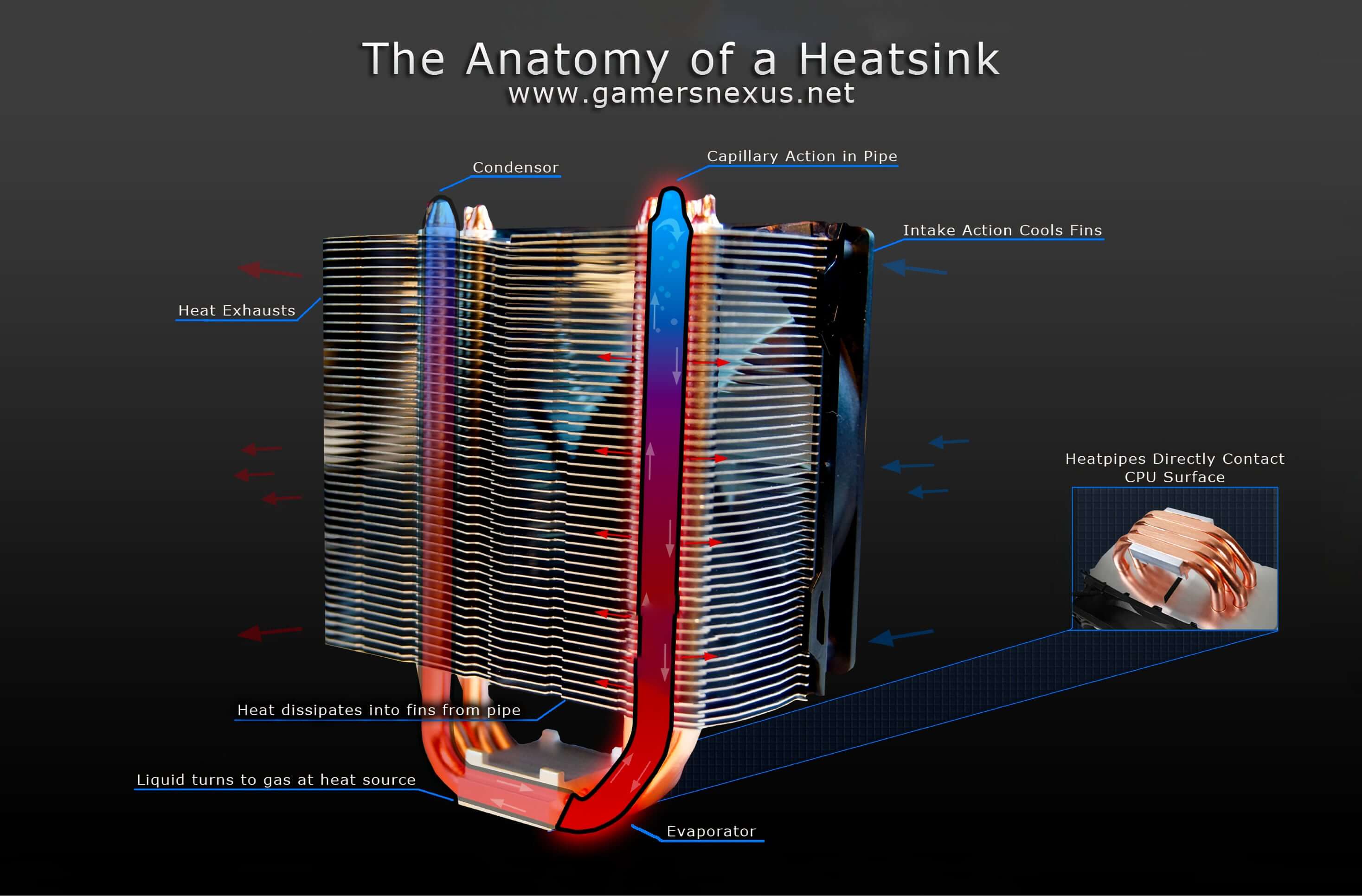

Now that we are able to switch warmth from the chip right into a warmth pipe or liquid, how will we effectively dump that warmth into the air? That is the place fins and radiators are available. A easy tube of water or a warmth pipe will switch some warmth into the encompassing air, however not very a lot. To essentially cool issues down, we have to enhance the floor space uncovered to the temperature gradient.
Skinny fins in a heatsink or radiator unfold the warmth over a big floor space, permitting a fan to effectively carry it away. The thinner the fins, the extra floor space can match right into a given area. Nonetheless, if the fins are too skinny, they will not make sufficient contact with the warmth pipe to successfully switch warmth into the fins.
It is a delicate stability – which is why, in some instances, a bigger cooler can carry out worse than a smaller, extra optimized one. Players Nexus put collectively an excellent diagram (under) exhibiting how this works in a typical heatsink:
Going Beneath Ambient: Superior and Unique Cooling
All the cooling strategies we have mentioned up to now work by the straightforward switch of warmth from a scorching chip to the encompassing air. This implies a chip can by no means get colder than the ambient temperature of the room it is in. If we wish to cool under ambient temperatures, or if we have to cool one thing huge like a complete knowledge heart, we have to apply some extra science. That is the place chillers and thermoelectric coolers are available.
Thermoelectric cooling, also referred to as a Peltier gadget, is just not highly regarded in the mean time however has the potential to grow to be very helpful. These units switch warmth from one facet of a cooling plate to the opposite by consuming electrical energy. They use particular thermoelectric supplies that may create a temperature distinction by way of an electrical potential.
When a DC present flows by the gadget, warmth is absorbed from one facet and transferred to the opposite, permitting the “cool” facet to drop under ambient temperature. At the moment, these units stay area of interest as a result of they require lots of vitality to realize important cooling. Nonetheless, researchers are working to develop extra environment friendly variations for broader use.

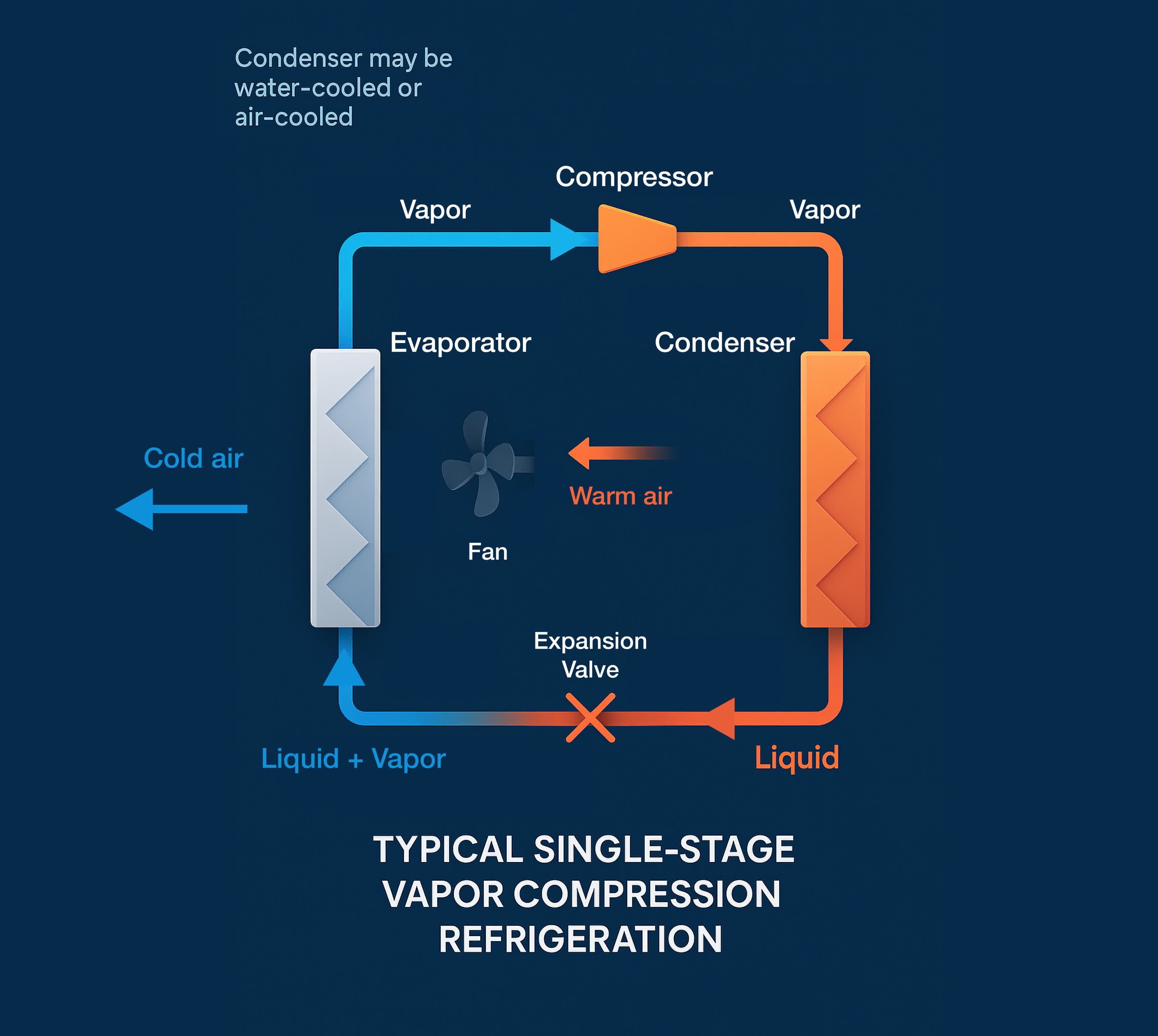

Simply as state transitions can switch warmth, altering the strain of a fluid will also be used to maneuver warmth. That is the precept behind fridges, air conditioners, and most different large-scale cooling techniques.
In these techniques, a particular refrigerant flows by a closed loop the place it begins as a vapor, is compressed, condensed right into a liquid, expanded, and evaporated again right into a vapor. This cycle repeats repeatedly, transferring warmth within the course of. The compressor does require vitality enter, however a system like this may cool nicely under ambient temperatures. That is how knowledge facilities and buildings keep cool even on the most well liked days of summer time.
Programs like these are usually second-order cooling techniques relating to electronics: first, the warmth from the chip is dumped into the room, after which the warmth from the room is expelled to the surface by way of a vapor compression system.
Nonetheless, excessive overclockers and efficiency fans might join devoted chillers on to their CPUs for further cooling efficiency. Momentary strategies of maximum cooling are additionally attainable utilizing consumables like liquid nitrogen or dry ice.
Why Cooling Issues Extra Than Ever
Cooling is one thing all electronics require, however it might take many kinds. The intention of the sport is to maneuver warmth from the new chip or system to the cooler environment. There is not any technique to actually do away with warmth – all we are able to do is transfer it someplace it will not grow to be an issue.
All digital electronics generate warmth because of the nature of how their inside transistors function. If that warmth is not correctly managed, the semiconductor materials begins to interrupt down, damaging the chip and shortening its lifespan.
Warmth is the enemy of all electronics designers and stays one of many key limiting elements in pushing efficiency ahead. We won’t merely make CPUs and GPUs larger, as a result of there is no sensible technique to cool one thing that highly effective. You simply cannot get the warmth out quick sufficient.
As computing calls for proceed to develop, managing warmth effectively is just changing into extra essential – not simply inside a single chip, however throughout complete knowledge facilities, AI compute farms, and even future quantum techniques. Thermal innovation is now on the coronary heart of scaling know-how itself.
Hopefully you may now have a larger appreciation for all of the science that goes into holding your electronics cool.
